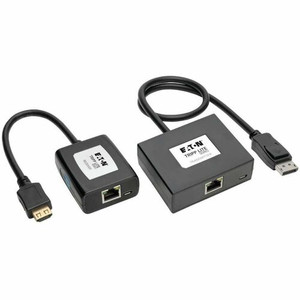

Tripp Lite DisplayPort HDMI Extender Kit, Black (TRPB1501A1HDMI)

Product Details

Tripp Lite Display Port to HDMI Over Cat5/6 Video Extender Transmittor & Receiver - 1 Input Device - 1 Output Device - 150 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI Out - DisplayPort - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - TAA Compliant

Part #: TRPB1501A1HDMI
MPN: TRP B1501A1HDMI
UNSPSC: 45111815

1 Input Device - 1 Output Device - 150 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI Out - DisplayPort - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - TAA Compliant

General Information

Manufacturer:Tripp Lite by Eaton
Manufacturer Part Number:B150-1A1-HDMI
Manufacturer Website Address:http://www.tripplite.com
Brand Name:Tripp Lite
Product Model:B150-1A1-HDMI
Product Name:B150-1A1-HDMI Video Console/Extender
Marketing Information:

Active extender kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio/video signal to HDMI and then extend it to a projector, monitor or TV up to 150' away. Kit is capable of extending a high-definition 1080i (60 Hz) signal up to 150' and a 1080p (60 Hz) signal up to 125'. Green and orange LEDs on both units indicate when they are receiving power from the USB Micro-B cables and sharing a signal for quick reference. Universal design is compatible with all operating systems. Hassle-free functionality does not require an external power supply for immediate use. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Kit supports 24-bit True Color (8 bits per channel) and stereo audio. Extender kit is perfect for digital signs, trade shows, presentations, classrooms, churches and more.

Product Type:Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology:Wired
Number of Input Devices Supported:1
Number of Output Devices Supported:1
Maximum Operating Distance:150 ft

Video

Graphics Modes:Full HD
Maximum Video Resolution:1920 x 1080

Interfaces/Ports

Network (RJ-45):Yes
HDMI Out:Yes
USB:Yes
DisplayPort:Yes
Number of Network (RJ-45) Ports:2
Number of USB Ports:2
Number of HDMI Outputs:1

Media & Performance

Media Type Supported:Twisted Pair
Twisted Pair Cable Standard:Category 6a

Physical Characteristics

Product Color:Black

Miscellaneous

Package Contents:

Transmitter Unit
Receiver Unit
2 x USB Micro-B Cables, 3 ft.
Owner's Manual

Environmental Certification:RoHS
Country of Origin:Taiwan
TAA Compliant:Yes

Warranty

Limited Warranty:1 Year
Additional Warranty Information:

1-year limited warranty

Active extender kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio/video signal to HDMI and then extend it to a projector, monitor or TV up to 150' away
Kit is capable of extending a high-definition 1080i (60 Hz) signal up to 150' and a 1080p (60 Hz) signal up to 125'
Green and orange LEDs on both units indicate when they are receiving power from the USB Micro-B cables and sharing a signal for quick reference
Universal design is compatible with all operating systems
Hassle-free functionality does not require an external power supply for immediate use
