6" Bessey Shop Clamp (013-Sq-4)
Part # 013-SQ-4
UPC 00788502013505
Log in for pricing
Have Questions? We're Available
Product Details

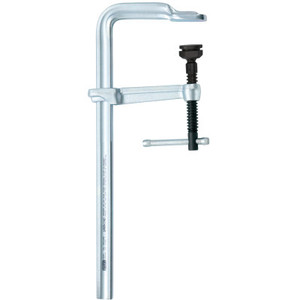

SQ Series Bar Clamps, 6 in, 4 3/4 in Throat, 1330 lb Load Cap
Additional Information
- Part #: 013-SQ-4
- MPN: SQ4
- UPC: 00788502013505
- Regular-duty, all-steel bar clamp
- Comes with standard rail profile and standard pad
- Heat treated, high carbon Acme threaded screw tempered and quenched to give greater loading capacity and longer service life
- The high-strength sliding pin T-Handle is sized according to the clamps capability
| Brand | BESSEY |
|---|---|
| Bar Thickness | 13/32 in |
| Bar Width | 55/64 in |
| Body Finish | Satin |
| Body Material | Drop-forged Steel |
| Capacity [Nom] | 6 in |
| Handle Material | Tempered Steel |
| Handle Type | Sliding Pin T-Handle |
| Height [Nom] | 1 1/4 in |
| Length [Nom] | 9.567 in |
| Load Cap. [Nom] | 1330 lb |
| Material | Steel |
| Opening Size [Max] | 6 in |
| Spindle Diam | 5/8 in |
| Style | Standard Pad |
| Throat Depth [Nom] | 4-3/4 in |
| Width [Nom] | 6.568 in |
| Wt. | 2.5 lb |
| Country of Origin | DE |
| Prop65 | No |
| Unit of Measure | EA |
| Minimum Order Quantity | 1 EA |
| Quantity in Pack | 1 EA |
| Last Updated | 2/7/2022 |
